PV-ULTRA
PV Ultra is a multicore DC solution that previously was solved by a multicore armoured
cable. These multicore armoured cables are no longer recommended for use on the DC
side of the installation. PV Ultra can now serve as a direct replacement allowing for a
compliant multicore solution.
The double insulated conductors are particularly suitable for use at the direct current (d.c.)
side of the photovoltaic system, with a nominal d.c. voltage of 1.5kV between conductor
and between conductor and earth. Due to the double insulation these cables are suitable
to be used with Class II equipment (meeting the requirement of BS7671 Clause 712.412.101
which states that the electrical equipment up to the DC connection of the PV inverter shall
be Class II or equivalent insulation)
The double insulated conductors are enclosed in a CarbonTek® bedding, to give even more
electrical protection against the steel wire armour (where applicable), with a final outer
sheathing of SolarTek® PVC being applied to all variants of the cable
(steel wire armoured or not)
Quick Specifications
Group Code
PV-ULTRA
Supplier
Doncaster Cables
Conductor
Tinned Annealed Copper Class 5 Flexible
Insulation
Double insulated cross-linked and fulfilling the requirements of BS EN 50618 Annex B.
Sheath
PVC UV resistant SolarTek
Min Operating Temperature
-15°C
Max Operating Temperature
90°C
Min Bending Radius
8 x diameter
Available Variations
| Name | Core Colours | Current Ratings | Unit | Colour | Bullet1 | Bullet2 | Bullet3 | Bedding | Details |
|---|---|---|---|---|---|---|---|---|---|
| PV-ULTRA2C4.0 | Red and White | 52A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA2C6.0 | Red and White | 67A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA2C710 | Red and White | 93A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |

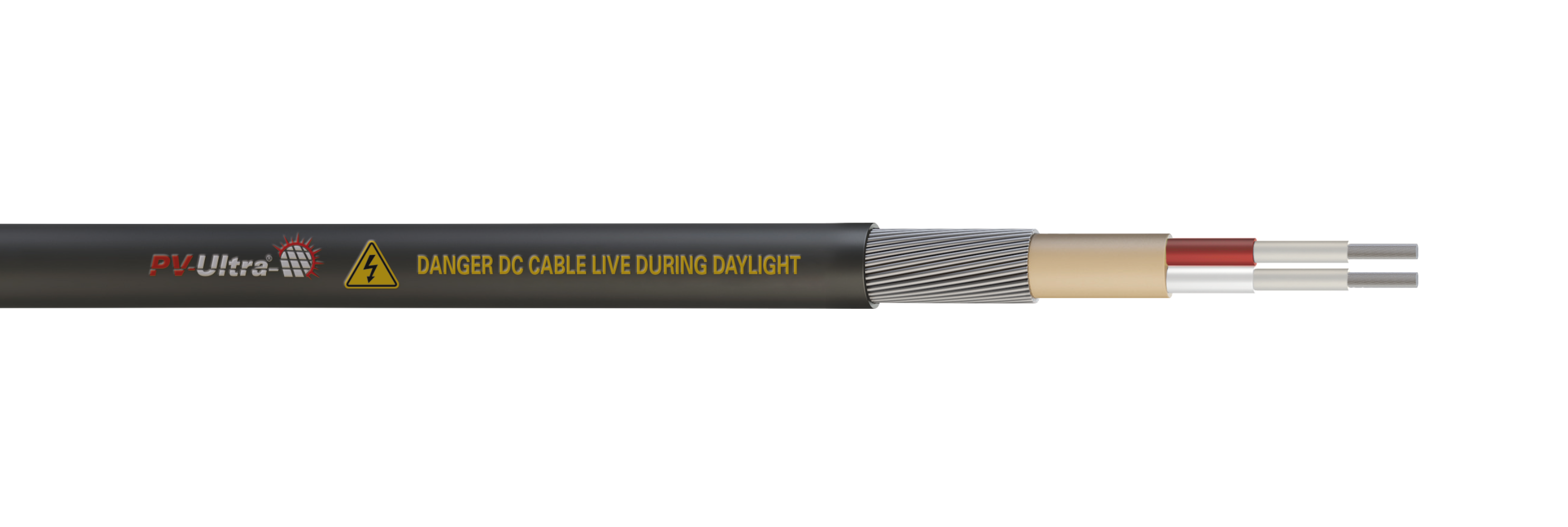

| PV-ULTRA2C4.0SWA | Red and White | 52A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA2C6.0SWA | Red and White | 67A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA2C710SWA | Red and White | 93A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |

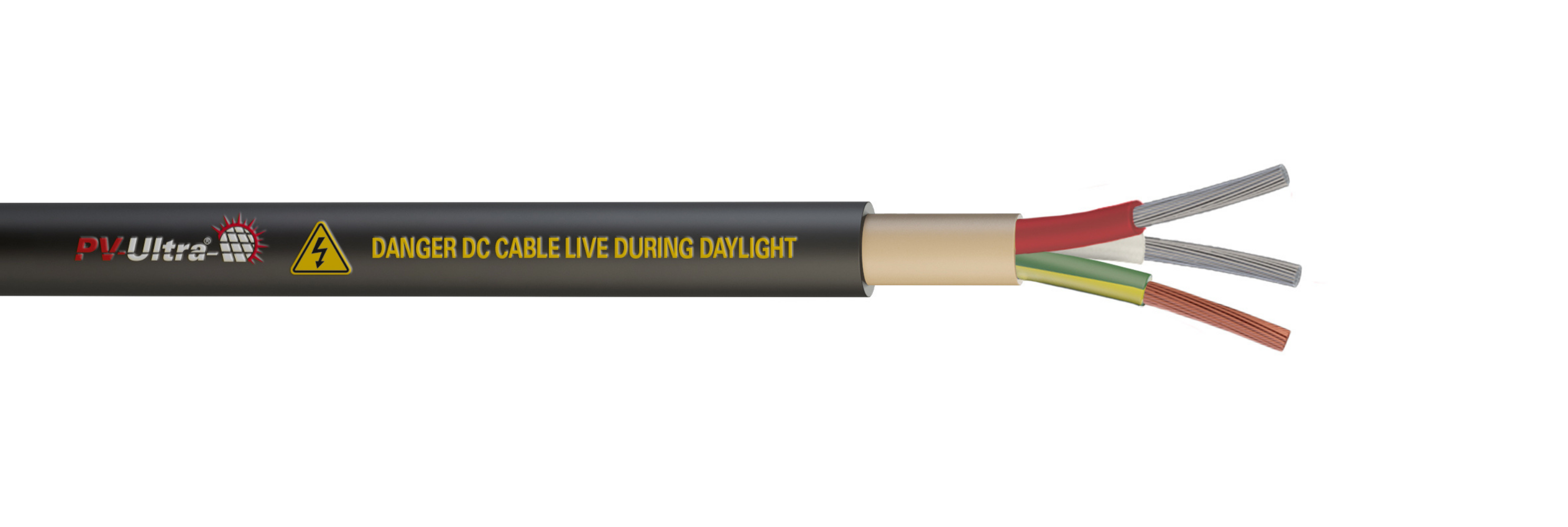

| PV-ULTRA3C4.0 | Red, White, Green/Yellow | 44A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA3C6.0 | Red, White, Green/Yellow | 67A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |

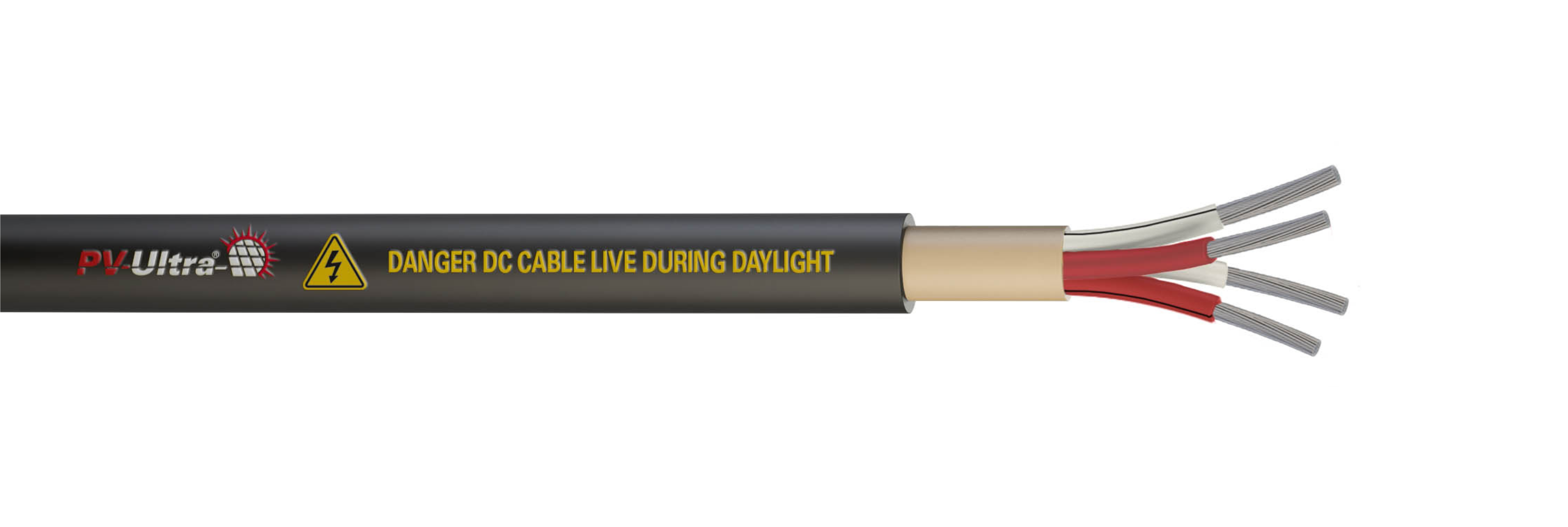

| PV-ULTRA4C4.0 | Red and White | 44A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA4C6.0 | Red and White | 57A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA4C710 | Red and White | 93A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |

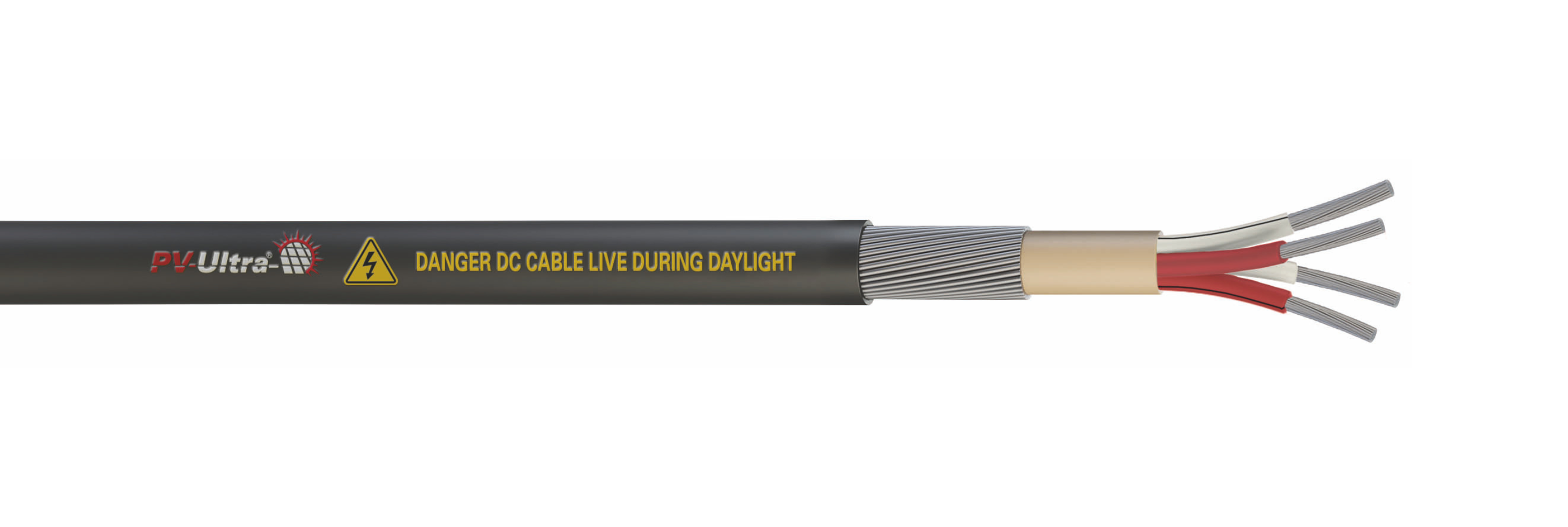

| PV-ULTRA4C4.0SWA | Red and White, Red and White | 44A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA4C6.0SWA | Red and White, Red and White | 57A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA4c710SWA | Red and White, Red and White | 93A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |

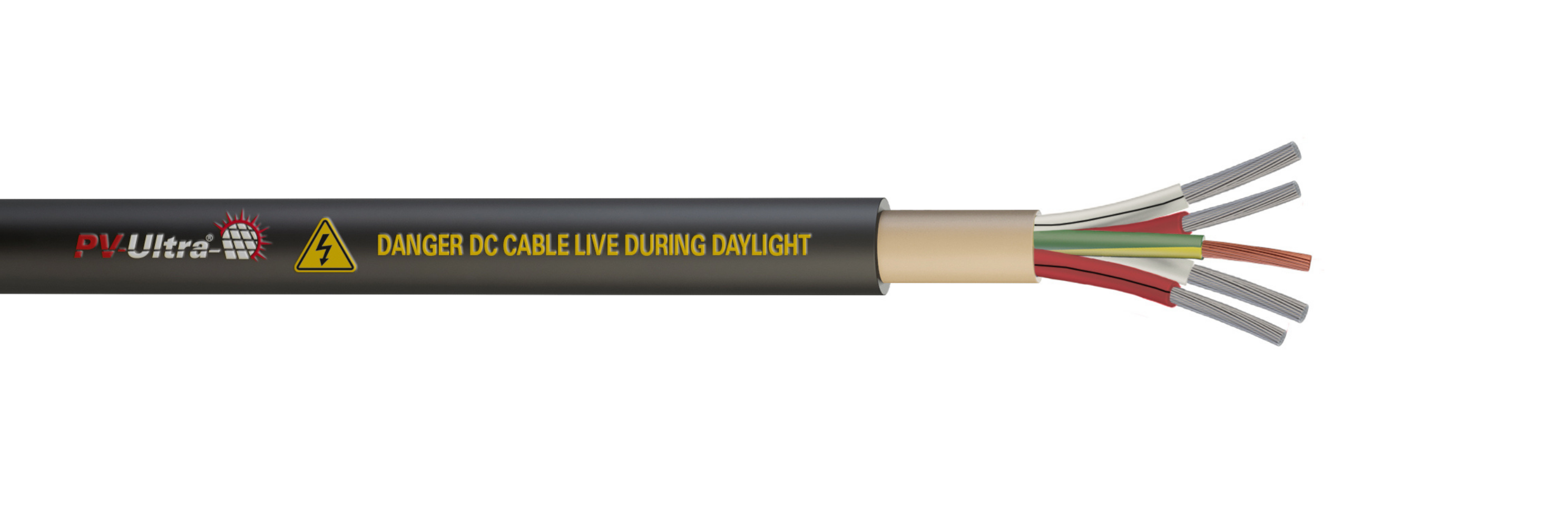

| PV-ULTRA5C4.0 | Red, White, Red, White, Green/Yellow | 44A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA5C6.0 | Red, White, Red, White, Green/Yellow | 67A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA6C4.0 | Red, White, Red, White, Red, White | 44A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
| PV-ULTRA6C6.0 | Red, White, Red, White, Red, White | 67A | 1000 | Black | Manufactured in the UK | Manufactured with 100% renewable energy | Uses materials and manufacturing techniques designed to make the electricians life easier | PVC CarbonTek Bedding | View |
