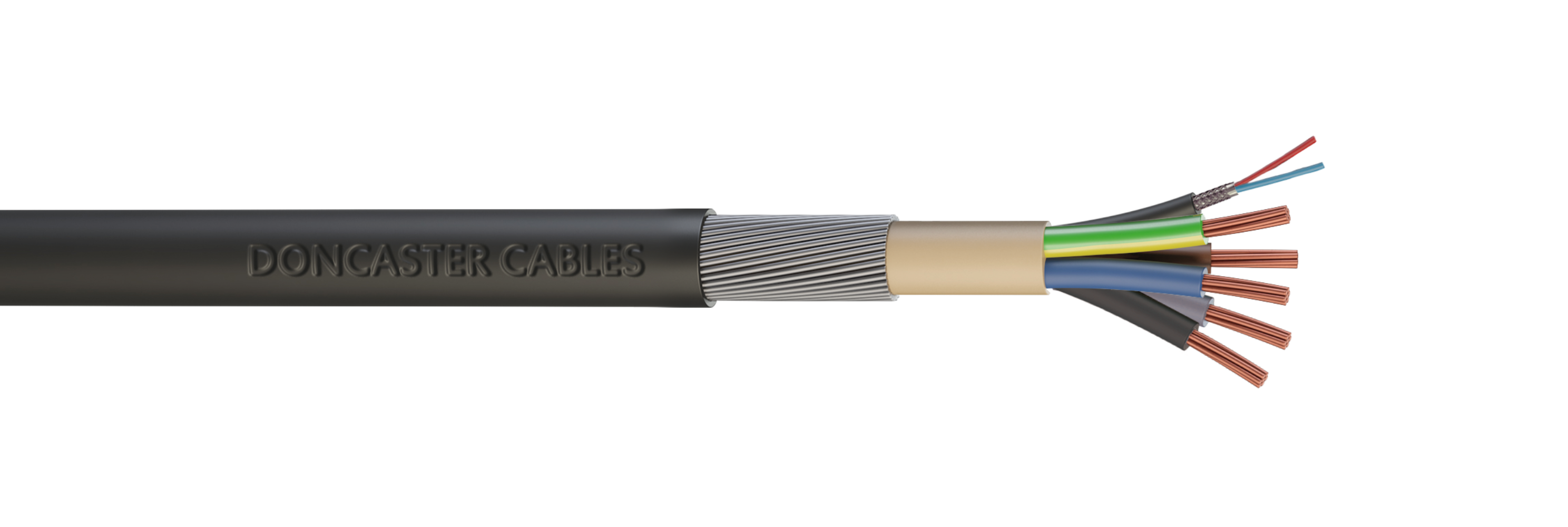

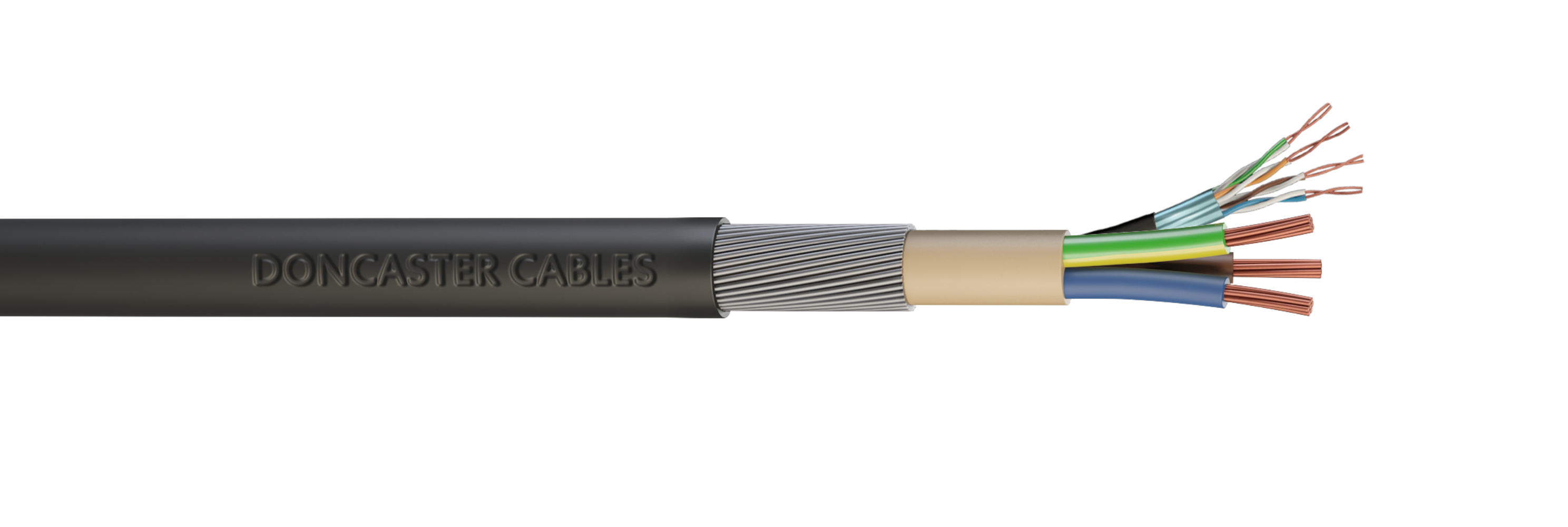

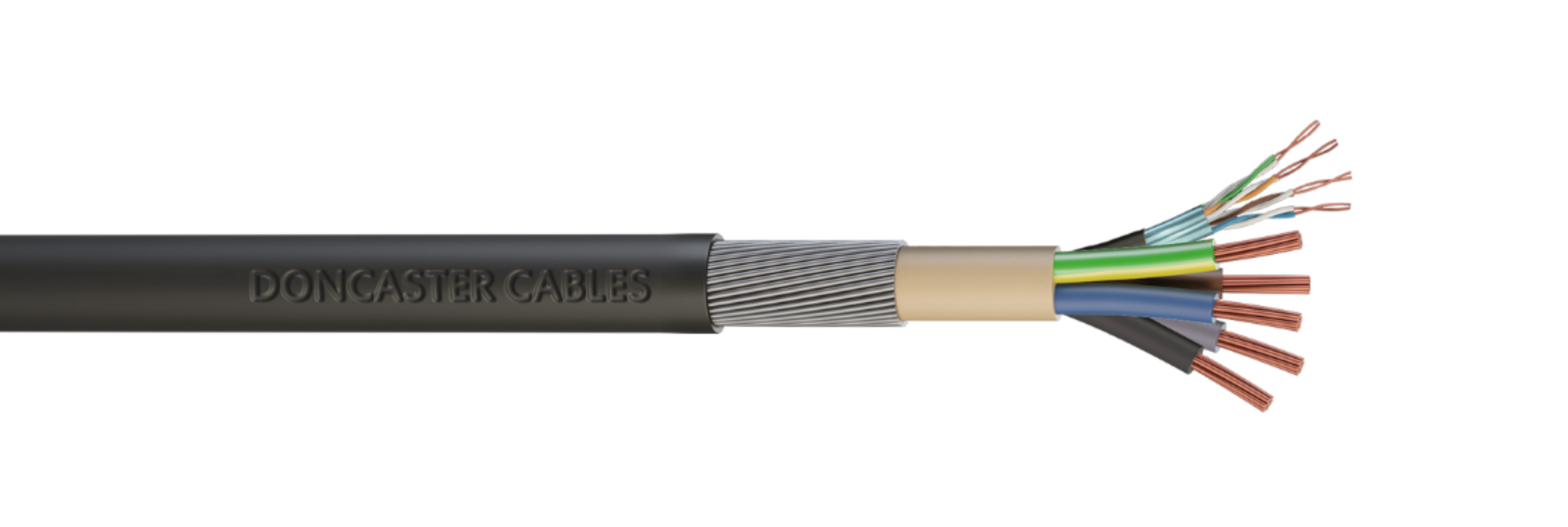

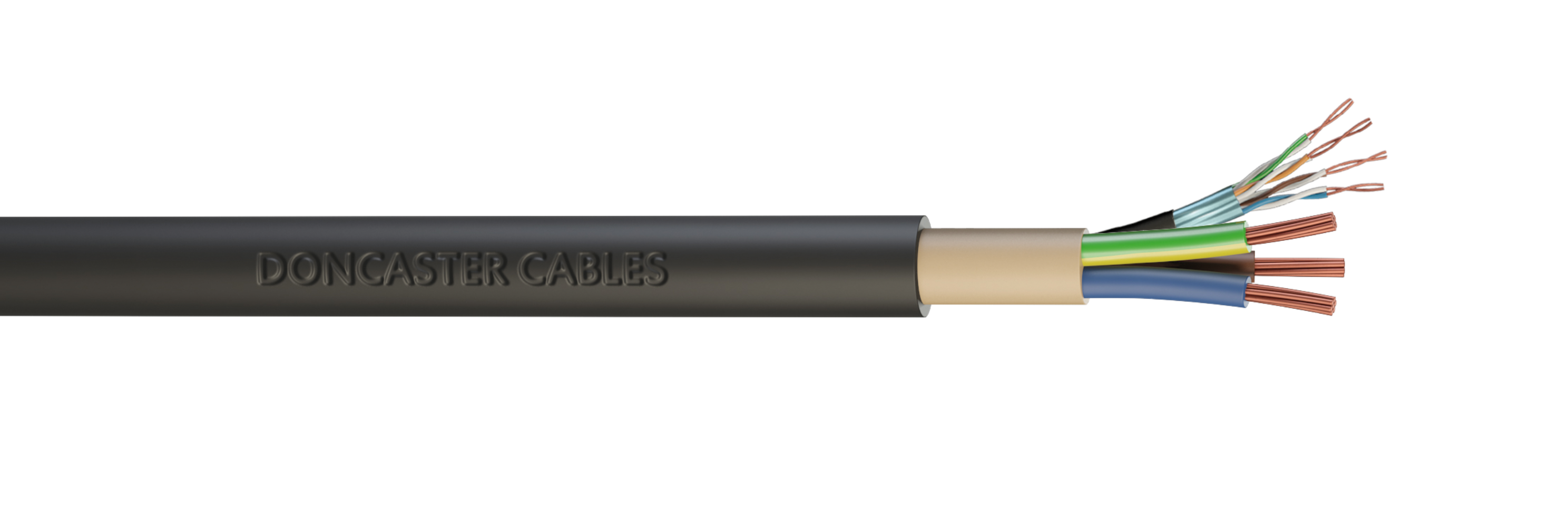

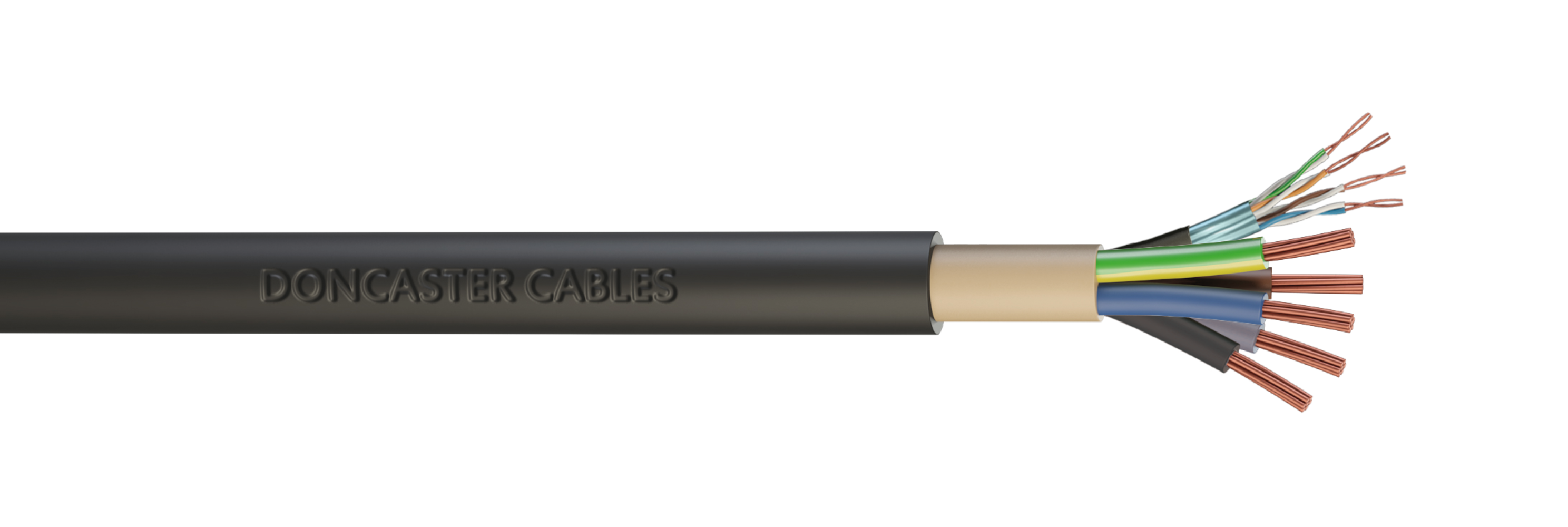

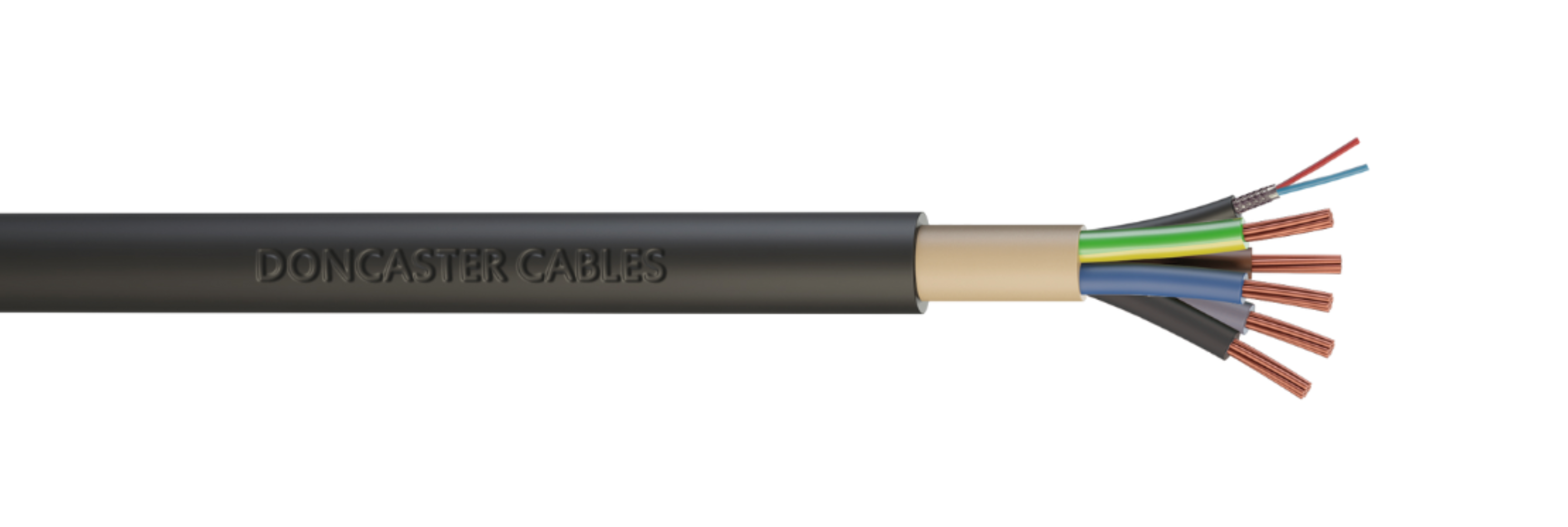

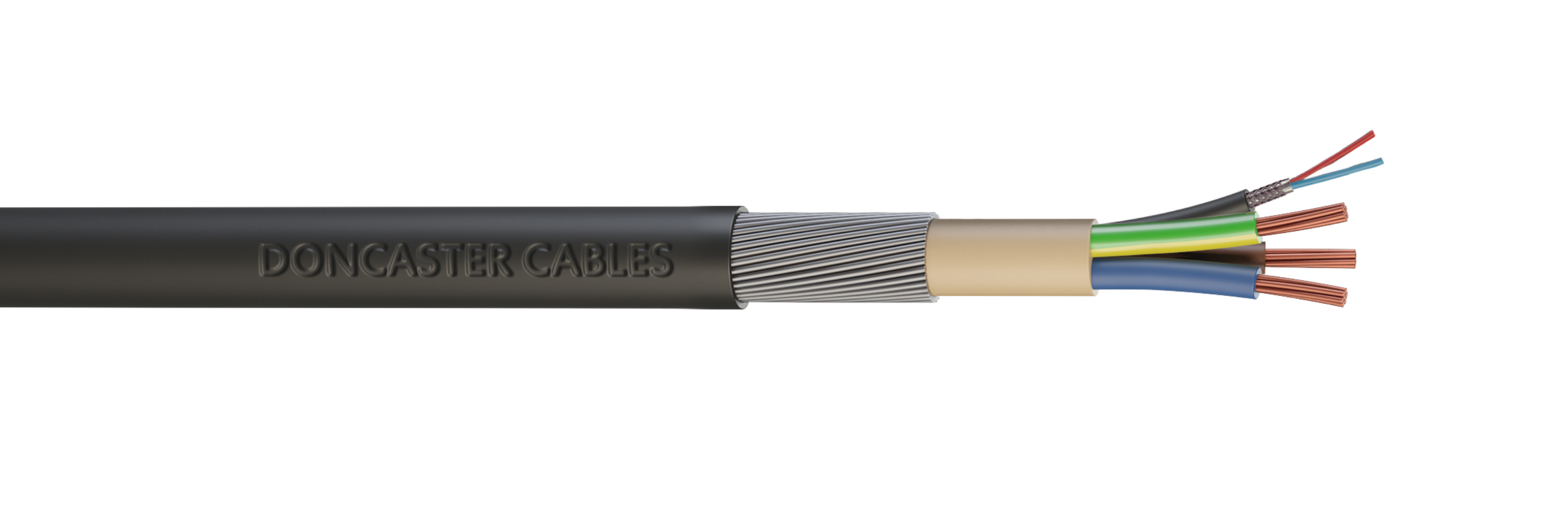

EV-ULTRA / EV- ULTRA CAT5
Manufactured in the UK This cable is designed for use in the installation of electric vehicle charge points. The cable incorporates power conductors and an enhanced Cat 5 screened data cable, encapsulated in a double sheathed design for extra protection. Whilst designed for use in electric vehicle charge points, the cable is also suitable for other installations where power and data is required. These cables are designed to be installed in air, clipped to surface, on cable tray/ladder work and embedded in concrete. The cables can be laid direct in the ground providing that suitable mechanical protection is in place.
Quick Specifications
Group Code
EV-ULTRA
Supplier
Doncaster Cables
Conductor
Plain Annealed Copper Class 2 Stranded to BS EN 60228
Insulation
Thermosetting XLPE Type GP8 to BS 7655-1.3
Sheath
CarbonTek®
Min Operating Temperature
-15°C
Max Operating Temperature
90°C
Min Bending Radius
8 x diameter
Available Variations
| Name | Core Colours | Maximum Current Rating (A) | Unit | Weight | Bedding | Armouring | Voltage Band I | Conductor Size | Details |
|---|---|---|---|---|---|---|---|---|---|
| EV-ULTRA 3 CORE 4.0 SQMM POWER + DATA CABLE | Green/Yellow, Blue, and Brown | 45 | 1000 | 309.05 | CarbonTek® | 4 | View | ||
| EV-ULTRA 3 CORE 4.0 SQMM POWER + DATA CABLE 50MT | Green/Yellow, Blue, and Brown | 45 | 1000 | 309.05 | CarbonTek® | 4 | View | ||
| EV-ULTRA 3 CORE 4.0 SQMM POWER + DATA CABLE 100MT | Green/Yellow, Blue, and Brown | 45 | 1000 | 309.05 | CarbonTek® | 4 | View | ||
| EV-ULTRA 3 CORE 4.0 SQMM SWA POWER + DATA CABLE | Green/Yellow, Blue, and Brown | 45 | 1000 | 499.05 | CarbonTek® | Galvanised steel wire armour | 4 | View | |
| EV-ULTRA 3 CORE 4.0 SQMM POWER + CAT5 CABLE | Green/Yellow, Blue, and Brown | 45 | 1000 | 389.05 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 4 | View | |
| EV-ULTRA 3 CORE 4.0 SQMM POWER + CAT5 CABLE 50MTR | Green/Yellow, Blue, and Brown | 45 | 1000 | 389.05 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 4 | View | |
| EV-ULTRA 3 CORE 4.0 SQMM POWER + CAT5 CABLE 100MT | Green/Yellow, Blue, and Brown | 45 | 1000 | 389.05 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 4 | View | |
| EV-ULTRA 3 CORE 4.0 SQMM SWA POWER + CAT5 CABLE | Green/Yellow, Blue, and Brown | 45 | 1000 | 568.65 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 4 | View |
| EV-ULTRA 3 CORE 6.0 SQMM POWER + DATA CABLE | Green/Yellow, Blue, and Brown | 58 | 1000 | 411.7 | CarbonTek® | 6 | View | ||
| EV-ULTRA 3 CORE 6.0 SQMM POWER + DATA CABLE 30M | Green/Yellow, Blue, and Brown | 58 | 1000 | 411.7 | CarbonTek® | 6 | View | ||
| EV-ULTRA 3 CORE 6.0 SQMM POWER + DATA CABLE 50MT | Green/Yellow, Blue, and Brown | 58 | 1000 | 411.7 | CarbonTek® | 6 | View | ||
| EV-ULTRA 3 CORE 6.0 SQMM POWER + DATA CABLE 100MT | Green/Yellow, Blue, and Brown | 58 | 1000 | 411.7 | CarbonTek® | 6 | View | ||
| EV-ULTRA 3 CORE 6.0 SQMM SWA POWER + DATA CABLE | Green/Yellow, Blue, and Brown | 58 | 1000 | 701.7 | CarbonTek® | Galvanised steel wire armour | 6 | View | |
| EV-ULTRA 3 CORE 6.0 SQMM POWER + CAT5 CABLE | Green/Yellow, Blue, and Brown | 58 | 1000 | 496.7 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 6 | View | |
| EV-ULTRA 3 CORE 6.0 SQMM POWER + CAT5 CABLE 50MT | Green/Yellow, Blue, and Brown | 58 | 1000 | 496.7 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 6 | View | |
| EV-ULTRA 3 CORE 6.0 SQMM POWER + CAT5 CABLE 100MT | Green/Yellow, Blue, and Brown | 58 | 1000 | 496.7 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 6 | View | |
| EV-ULTRA 3 CORE 6.0 SQMM SWA POWER + CAT5 CABLE | Green/Yellow, Blue, and Brown | 58 | 1000 | 822.7 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 6 | View |
| EV-ULTRA 3 CORE 10 SQMM POWER + CAT5 CABLE | Green/Yellow, Blue, and Brown | 80 | 1000 | 531.84 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 10 | View | |
| EV-ULTRA 3 CORE 10 SQMM POWER + CAT5 SWA CABLE | Green/Yellow, Blue, and Brown | 80 | 1000 | 872.35 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 10 | View |
| EV-ULTRA 3 CORE 16 SQMM POWER + CAT5 CABLE | Green/Yellow, Blue, and Brown | 107 | 1000 | 752.69 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 16 | View | |
| EV-ULTRA 3 CORE 16 SQMM POWER + CAT5 SWA CABLE | Green/Yellow, Blue, and Brown | 107 | 1000 | 1132.69 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 16 | View |
| EV-ULTRA 5 CORE 6.0 SQMM POWER + CAT5 CABLE | Green/Yellow, Blue, Brown, Black, and Grey | 52 | 1000 | 536.37 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 6 | View | |
| EV-ULTRA 5 CORE 6.0 SQMM POWER + CAT5 SWA CABLE | Green/Yellow, Blue, Brown, Black, and Grey | 52 | 1000 | 873.17 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 6 | View |
| EV-ULTRA 5 CORE 10 SQMM POWER + CAT5 CABLE | Green/Yellow, Blue, Brown, Black, and Grey | 71 | 1000 | 746.13 | CarbonTek® | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 10 | View | |
| EV-ULTRA 5 CORE 10 SQMM POWER + CAT5 SWA CABLE | Green/Yellow, Blue, Brown, Black, and Grey | 71 | 1000 | 1121.13 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 10 | View |
| EV-ULTRA 5 CORE 16 SQMM POWER + CAT5 SWA CABLE | Green/Yellow, Blue, Brown, Black, and Grey | 91 | 1000 | 1807.24 | CarbonTek® | Galvanised steel wire armour | is defined as levels of voltage which are too low to provide serious electric shocks; effectively this limits the band to extra-low voltage (ELV), including telecommunications, signalling, bell, control and alarm circuits. | 16 | View |
