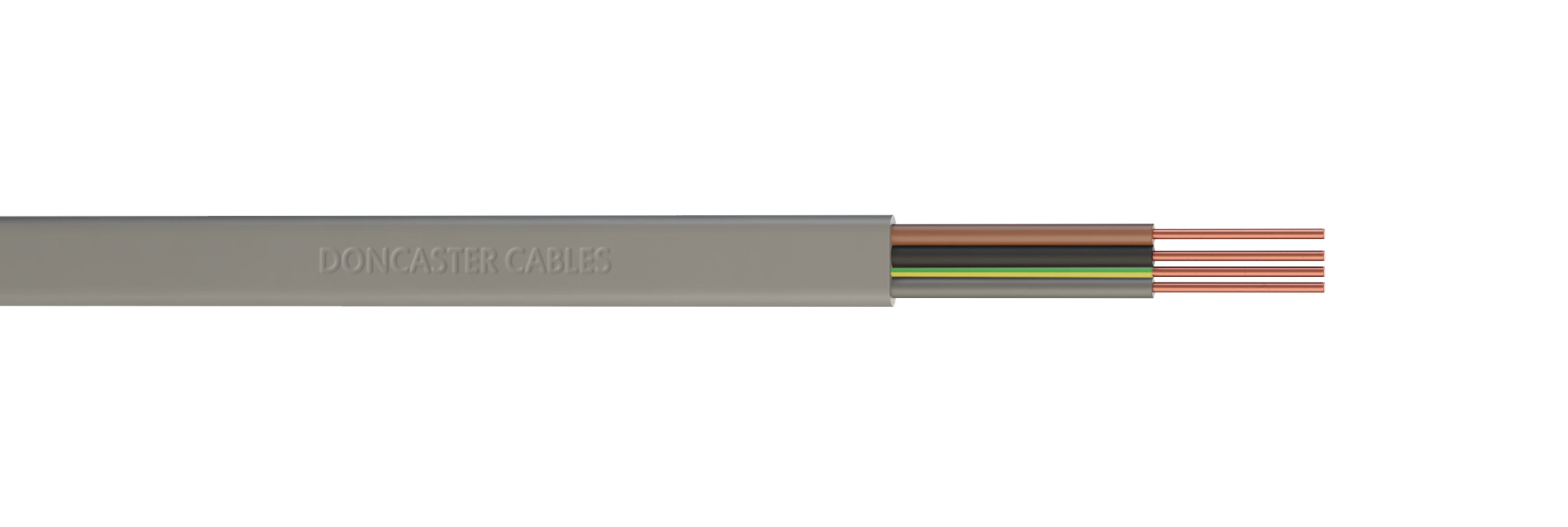

EARTHSURE
Designed for use in light industrial and domestic wiring.
These cables are intended for fixed installation in dry or damp premises. These cables can be installed in conduit, in cable trunking and in cable ducting or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.
Quick Specifications
Group Code
EARTHSURE
Supplier
Doncaster Cables
Conductor
Plain Annealed Copper Class 1 or 2 to BS EN 60228
Insulation
PVC Type TI1 to BS EN 50363-3
Sheath
EarthTek®
Min Operating Temperature
-15°C
Max Operating Temperature
70°C
Min Bending Radius
6 x diameter
Available Variations
| Name | Core Colours | Current Ratings | Unit | Weight | Conductor Size | Voltage Rating | Reel Dimensions (mm) | Number of conductors | Details |
|---|---|---|---|---|---|---|---|---|---|
| EARTHSURE 2X1.0+1.0 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 67.18 | 1 | 300/500V | 225x225x150 | 2 + CPC | View |
| EARTHSURE 2X1.5+1.0 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 85.4 | 1.5 | 300/500V | 225x225x150 | 2 + CPC | View |
| EARTHSURE 2X1.5+1.0 GREY TWIN BROWN 100 MTR RLS | Brown, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 85.4 | 1.5 | 300/500V | 225x225x150 | 2 + CPC | View |
| EARTHSURE 2X2.5+1.5 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 123.4 | 2.5 | 300/500V | 250x250x150 | 2 + CPC | View |
| EARTHSURE 2X4.0+1.5 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 175 | 4 | 300/500V | 300x300x150 | 2 + CPC | View |
| EARTHSURE 2X6.0+2.5 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 225 | 6 | 300/500V | 250x250x150 | 2 + CPC | View |
| EARTHSURE 2X10+4.0 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 375 | 10 | 300/500V | 375x375x300 | 2 + CPC | View |
| EARTHSURE 2X16+6.0 GREY 100 MTR RLS | Blue, Green/Yellow, Brown | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 580 | 16 | 300/500V | 470x470x300 | 2 + CPC | View |
| EARTHSURE 3X1.0+1.0 GREY 100 MTR RLS | Brown, Black, G/Y, Grey | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 88.36 | 1 | 300/500V | 250x250x150 | 3 + CPC | View |
| EARTHSURE 3X1.5+1.0 GREY 100 MTR RLS | Brown, Black, G/Y, Grey | For current ratings refer to table 4D5 of BS7671 IET Wiring Regulations. | 1000 | 115.6 | 1.5 | 300/500V | 275x275x150 | 3 + CPC | View |
