  • H6241B
    XLPE Insulated, LSNH Sheathed Cables with Circuit Protective Conductor

    Specification

    Conductor

    • Plain Annealed Copper Class 1 or 2 to BS EN 60228

    Insulation

    • Thermosetting XLPE Type GP8 to BS 7655-1.3

    Sheath

    • Thermoplastic LSNH Type LTS 2 to BS 7655-6.1

    Min Operating Temperature

    • -15°C

    Max Operating Temperature

    • 90°C

    Min Bending Radius

    • 6 x ∅

    Core Colours

    • Brown or Blue

    Sheath Colours

    • White

    Current Carrying Capacity

    • For current ratings refer to table 4E2 of BS7671 IET Wiring Regulations

    XLPE Insulated, LSNH Sheathed Cables with Circuit Protective Conductor

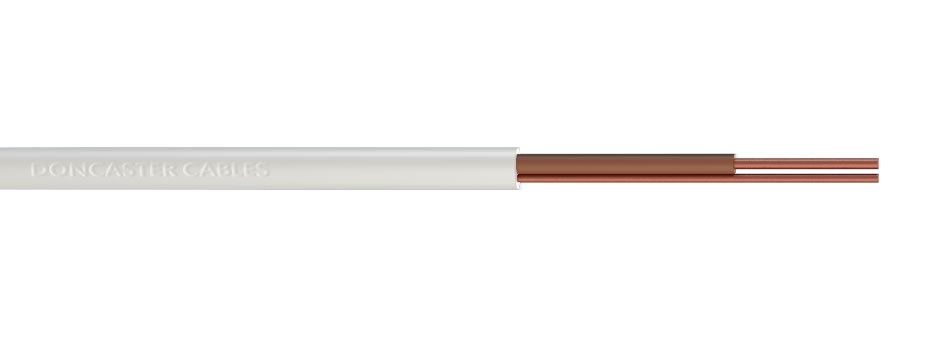

    Product Code: H6241B

    Product Description

    Manufactured to BS 7211:2012 Table 5

    Plain Annealed Copper Conductor / XLPE Insulated / LSNH Sheathed with bare
    Circuit Protective Conductor. 300/500V.

    These cables are designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire.

    Designed for use in light industrial and domestic wiring. These cables are intended for fixed installation in dry or damp premises.

    These cables can be installed in conduit, in cable trunking and in cable ducting. Or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.

    Product Details

    Reference NumberNumber and Nominal Cross Sectional Area of Conductors (mm2)Nominal Stranding of Conductor (mm)Nominal Stranding of CPC (mm)Nominal Radial Thickness of insulation (mm)Nominal Radial Thickness of Sheath (mm)Overall Diameter Lower Limit (mm)Overall Diameter Upper Limit (mm)Approximate Weight (kg/km)
    *6241B1.51 x 1.51 / 1.381 / 1.13 (1.0mm2)0.70.9 4.4 x 5.45.3 x 6.656
